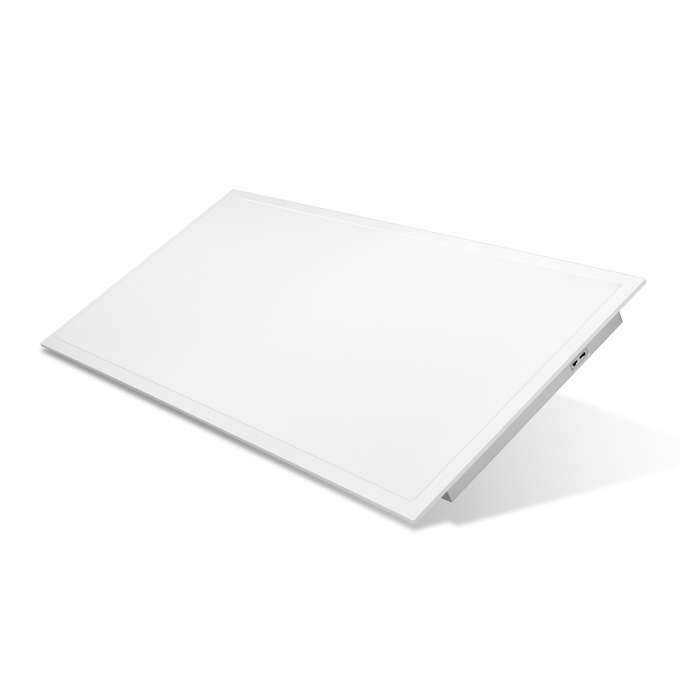

LED BACKLIT PANEL: BLP-VN

In Stock

NLV Lighting Backlit Panel luminaires are designed for a wide variety of applications for use in office buildings, retail shops, warehouses, manufacturing, gyms, and other industrial buildings. These fixtures are designed for 10 ft to 20 ft ceilings heights. The power and CCT tunability provides customers the option to use same fixture for multiple locations. A unique and intelligent IC control programed driver provides consistent color mixing and protection of all electronics. All luminaires come with a high-quality diffuser providing added protection and glare control. These fixtures are energy-efficient replacements for linear fluorescent and HID fixtures.

Download Product Specifications

    Ask for this product?



    [dynamictext page-title "CF7_get_post_var key='title'" ]


    Add to wishlist
    Category:
    Tags: , , , , , , , ,

    Description

    NLV Lighting Backlit Panel is available in three sizes; 2 x 2, 1 x 4 & 2 x4 in a range of  power from 20W to 60W with market leading efficacy of 130 LM/W to 160 LM/W. Three variants of the product are available; Regular Series, Power and CCT Tunable Series and 2.4G Wireless CCT Tunable Series. Dimming, motion sensing, and emergency backup are available as options.

    Additional information

    Input Power

    lorem ipsum
    Lifetime

    lorem ipsum
    Fixture Dimensions

    lorem ipsum
    Fixture Weight

    lorem ipsum

    Features

    • Tier-1 LED suppliers; LM80 rated at CRI >80
    • Power Range: 20W to 60W
    • 120V to 277V and 120V to 347V
    • PF >0.90, THD ≤ 15%
    • Multiple product sizes (L x W): 2 x 2, 1 x 4, and 2 x 4.
    • Multiple Products Options

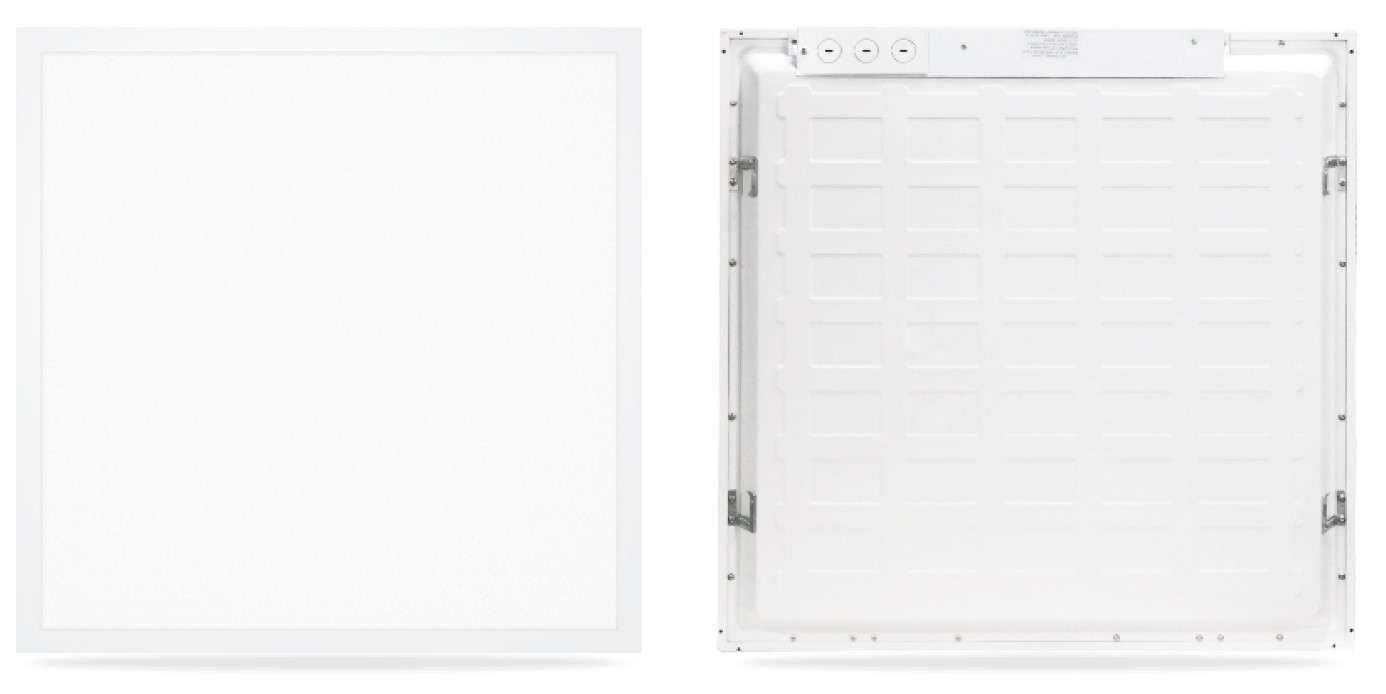

      • Regular Series

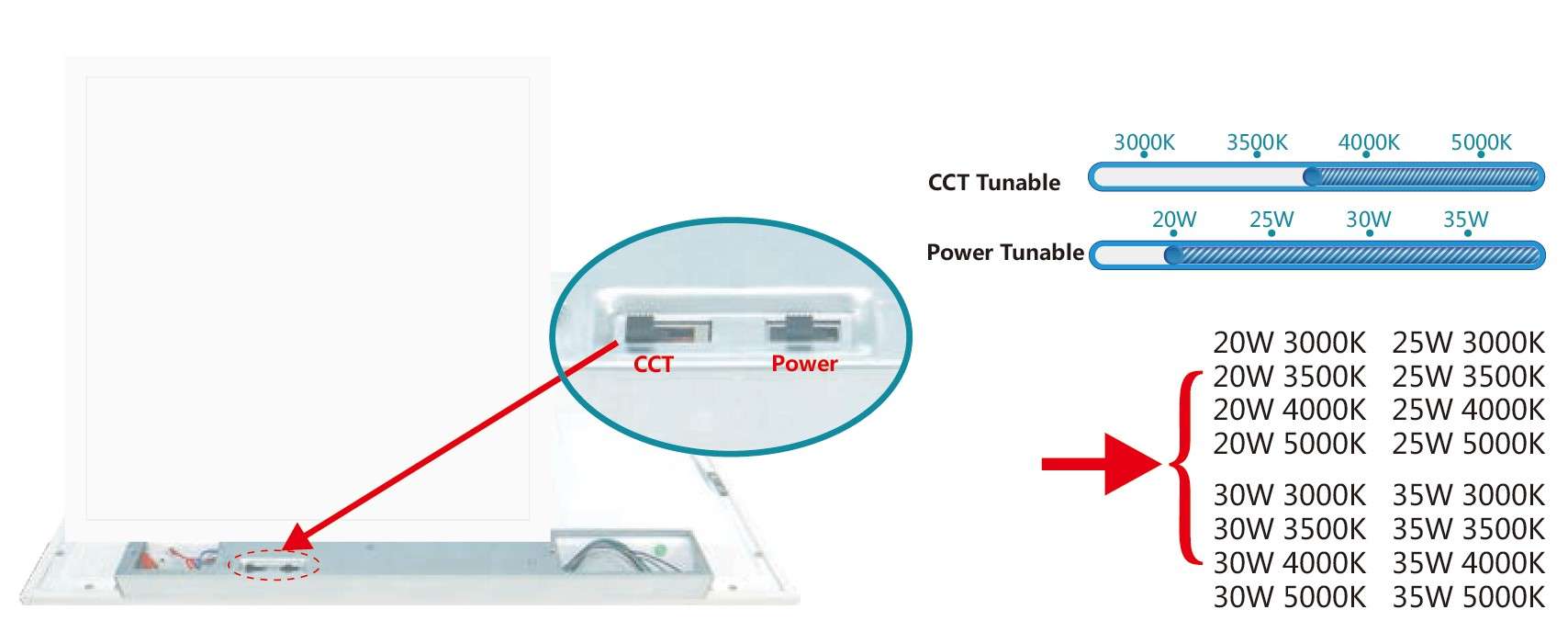

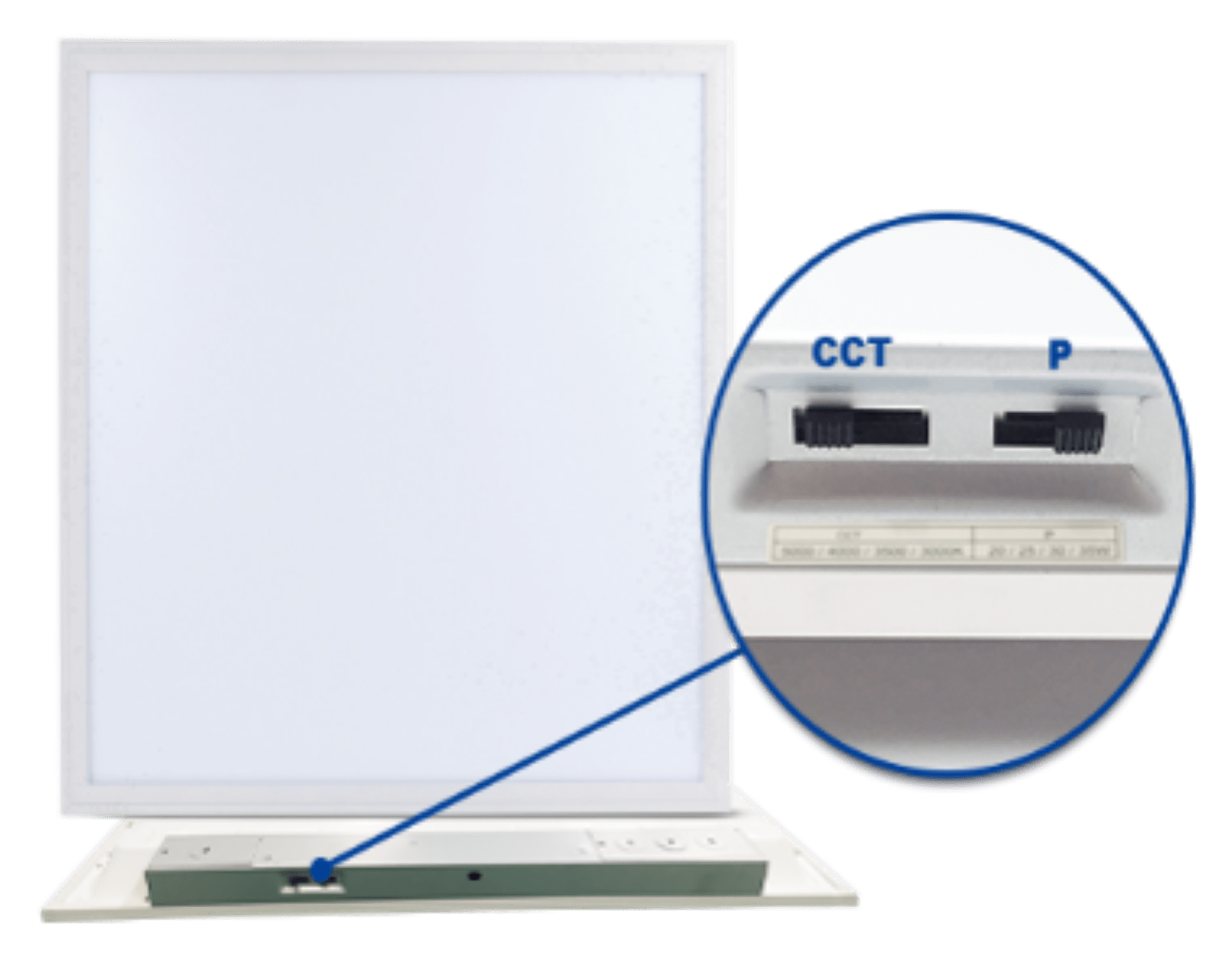

      • CCT & Power Tunable

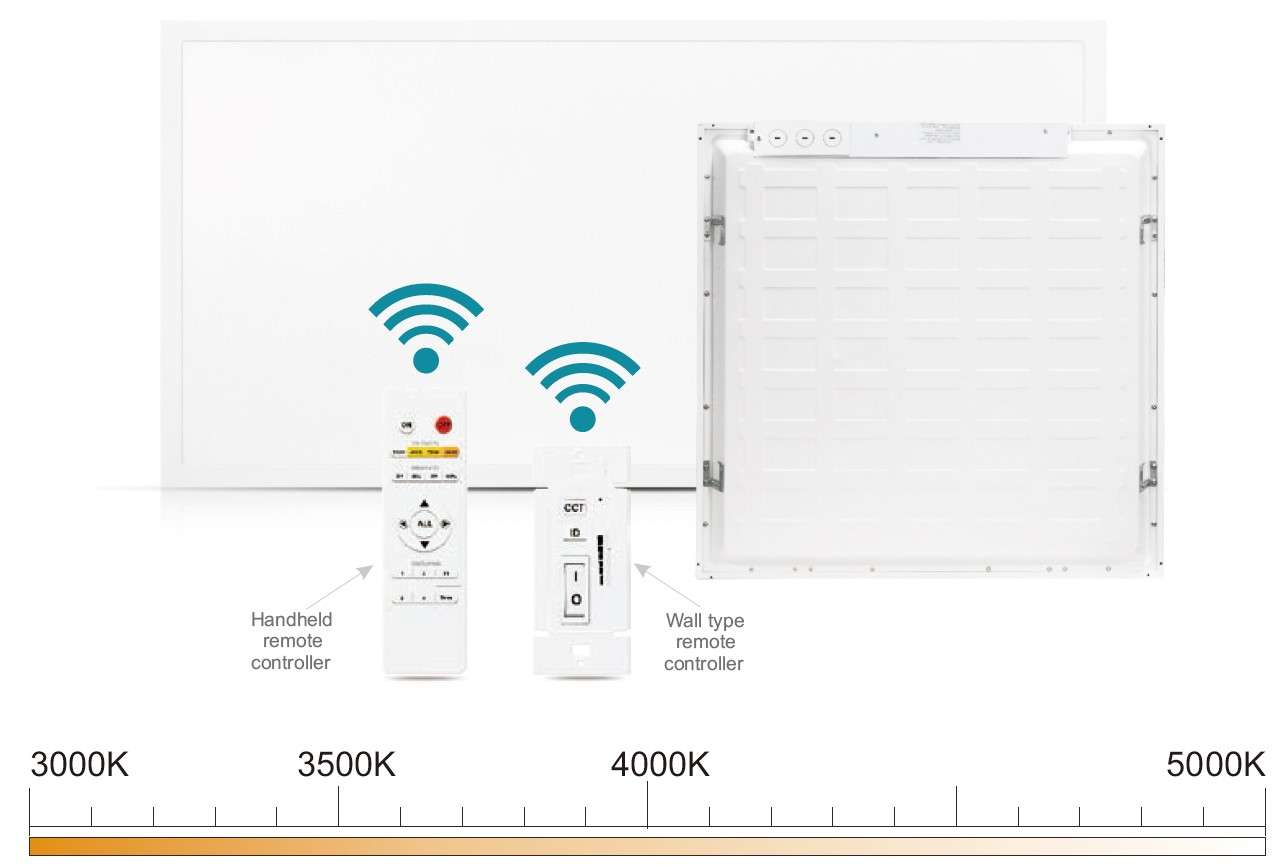

      • 2.4G Wireless CCT Tunable
    • Standard 5 Year warranty

    Performance Data

    • Efficacy Range: 130 to 160 LM/W
    • IP44 and IP65 (for cleanroom applications)
    • CCT range
      • Regular: 3000K to 5700K
      • Tunable CCT: 3000K-3500K-4000K-5000K
    • Power tunable
      • 2 x 2 or 1 x4 sizes: 20W/25W/30W/35W
      • 2 x 4 size: 35W/40W/45W/50W
    • Operating Temperature: -40oC to 50oC
    • Emergency battery back up option
    • Motion Sensing and Dimming options

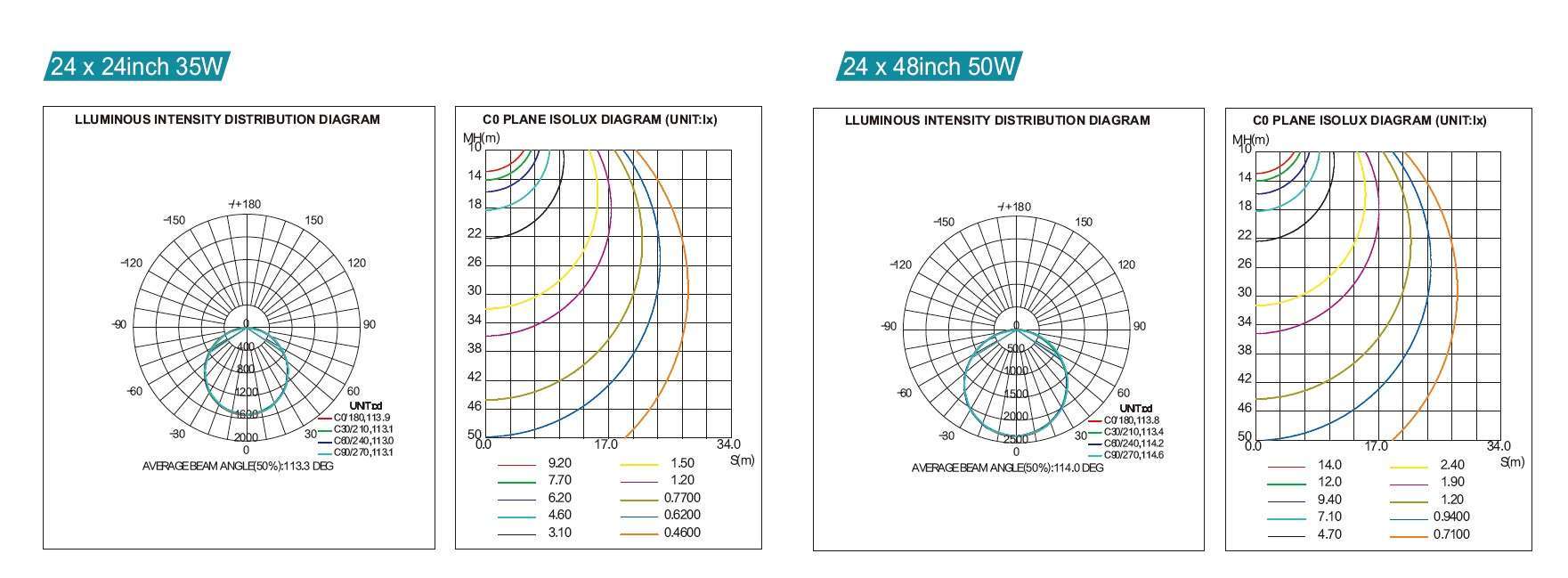

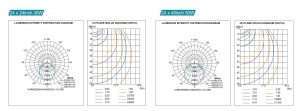

    Photometrics

    BACKLIT PANEL LIGHT DISTRIBUTION

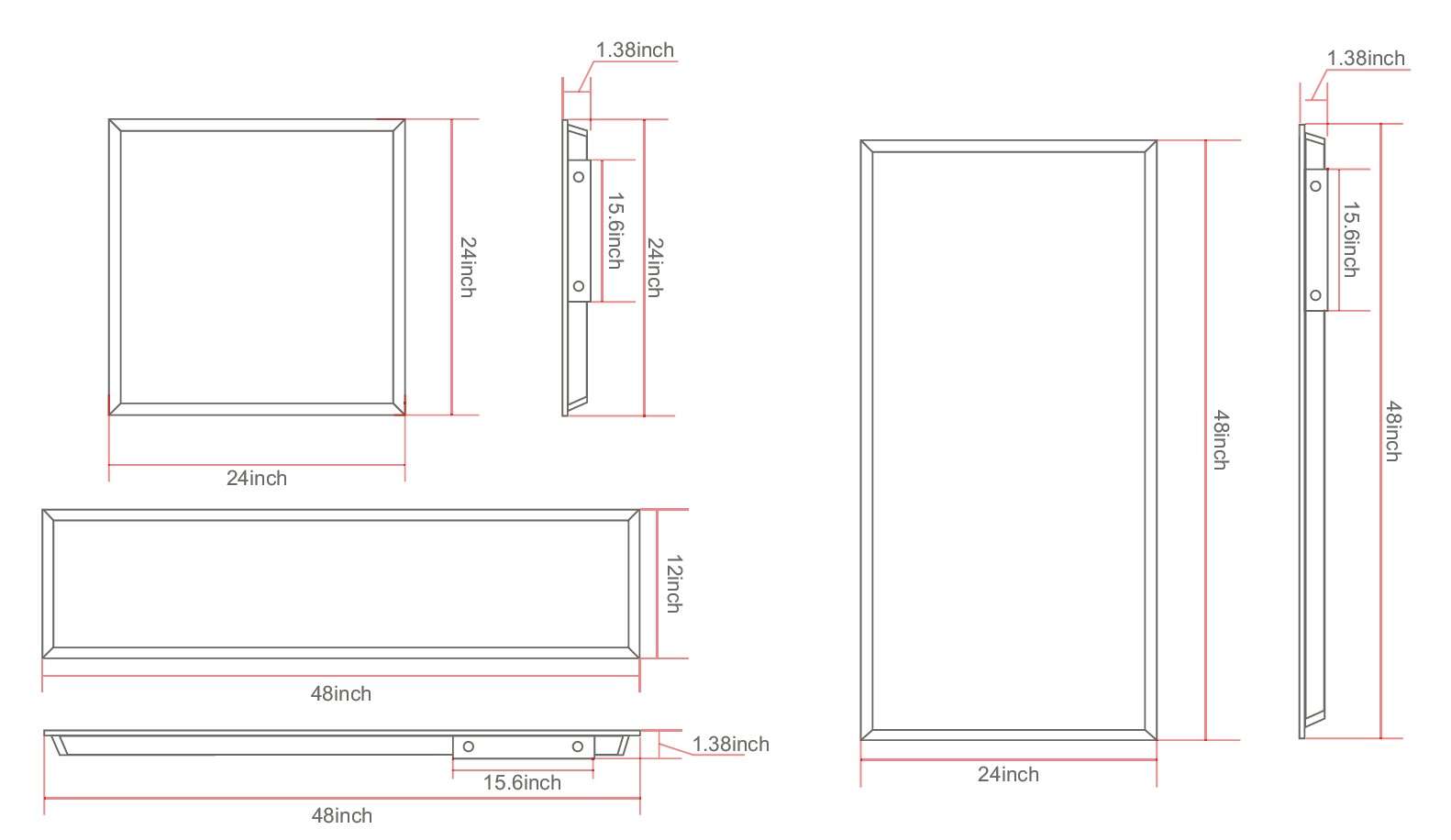

    Dimensions & Packaging

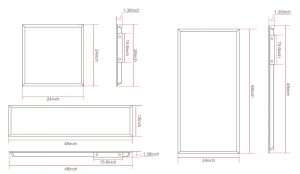

    BACKLIT PANEL DIMENSIONS

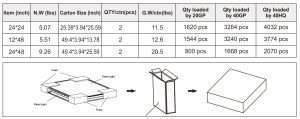

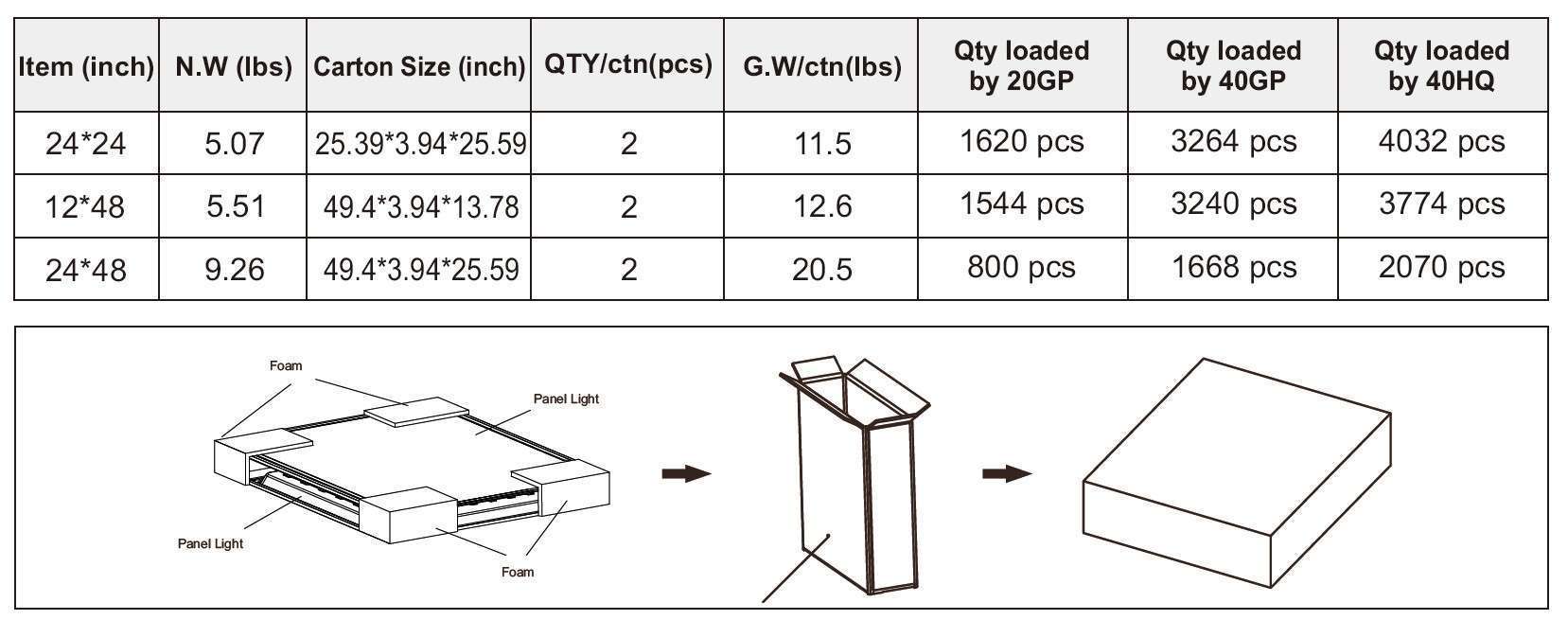

    Packing Info:

    Ordering Info

    Example:

    Regular Series: NLV-BLP-R-VN-30W22-50K-277V-130LPW-DSE-WH

    Power & CCT Tunable: NLV-BLP-T-VN-50W24-50K-277V-130LPW-DSE-WH

    Wireless CCT Tunable : NLV-BLP-W-VN-35W22-50K-277V-130LPW-DSE-WH
